HTTPS Encryption Lifecycle - Under the Hood

The padlock is not “RSA encrypt the whole page.” It is a short asymmetric bootstrap, then fast symmetric crypto on every TLS record.

Most engineers know HTTPS means “HTTP over TLS.” Fewer can name when the certificate matters, when ECDHE runs, and when AES-GCM actually protects GET /api/orders. That gap shows up in wrong debugging: blaming the API for a handshake failure, or assuming the load balancer “keeps HTTPS all the way to the pod.”

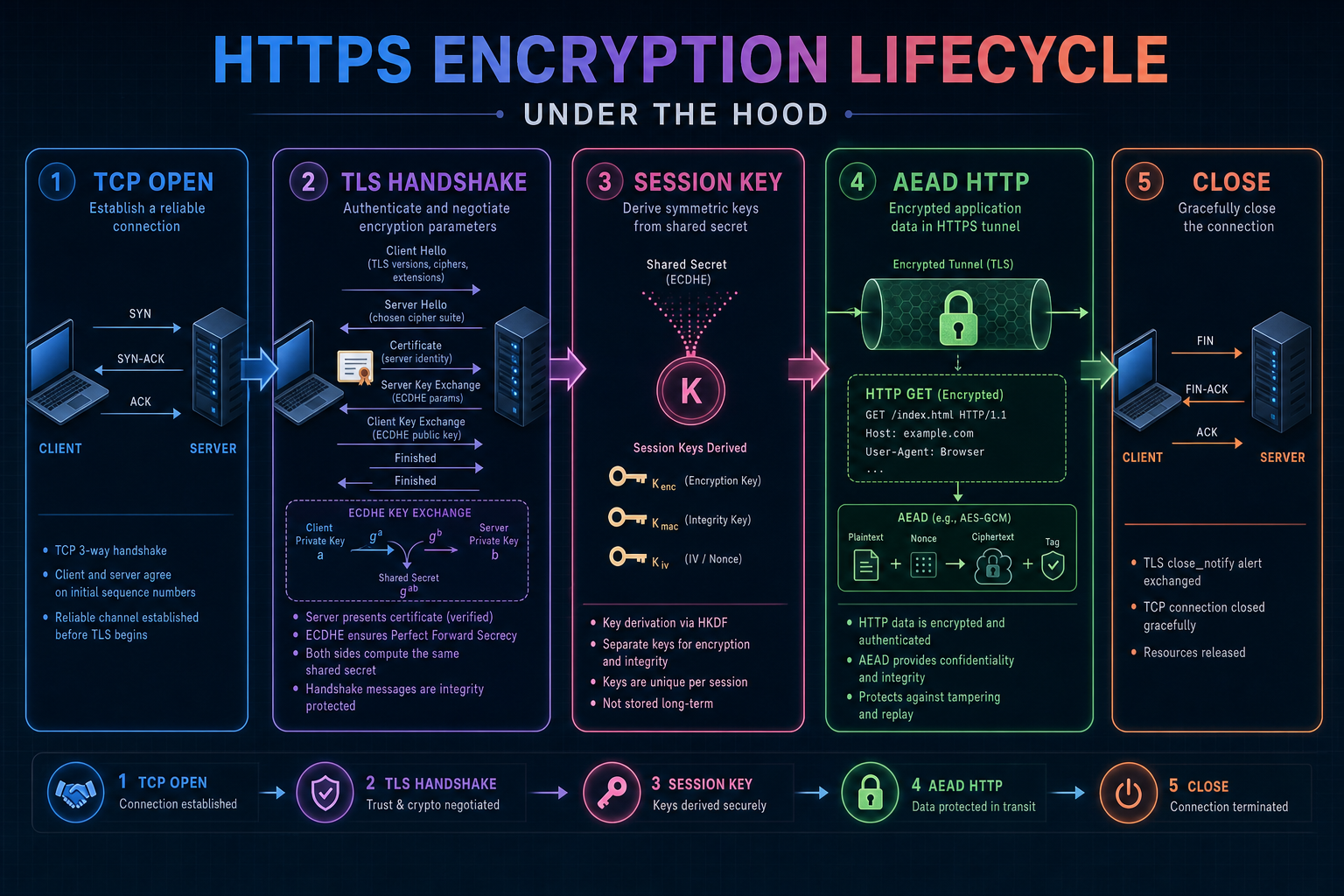

This piece walks one full HTTPS call on classic TCP :443: open → handshake → session keys → encrypted HTTP → close. HTTP/3 (QUIC) uses the same crypto ideas on UDP; the wire shape differs (see TCP vs UDP Under the Hood).

THE CLAIM

Asymmetric crypto proves who you are talking to and helps agree a secret. Symmetric crypto (AEAD) protects every Application Data record after that. Design and debug by phase. Do not treat “HTTPS” as one undifferentiated blob.

The bottom line first

• One call lifecycle: TCP open → TLS handshake → derive session keys → AEAD-protect HTTP → teardown.
• Certificate = identity, not bulk encryption of your JSON.
• ECDHE (key agreement) produces a shared session secret without mailing that secret as one ciphertext blob.
• Bulk traffic uses AES-GCM or ChaCha20-Poly1305 with a session key, nonce, and tamper check per record.
• TLS ends where something terminates it (browser, LB, ingress, sidecar). The next hop is a new trust decision.
• Debug by layer: TCP connect vs TLS alert vs HTTP status. They fail differently.

What “end to end” means here

Here end to end means one client↔server TLS session for one call (or one connection reused for keep-alive). It does not automatically mean “encrypted from browser to application process with no decrypt in between.”

Claim people say	What is usually true
“HTTPS end to end”	Encrypted to the TLS terminator
Terminator = app	Rare in enterprise; often LB / ingress / mesh
Hop after terminate	Cleartext or new TLS (re-encrypt) unless you designed otherwise
True app-to-app E2E	Needs mTLS, message-level crypto, or no middlebox decrypt

Companion framing: HTTP vs HTTPS Under the Hood for cleartext vs TLS wrap; Symmetric vs Asymmetric Encryption Under the Hood for why the hybrid exists.

Components on the path

Piece	Role in this lifecycle
TCP	Ordered byte pipe on :443 before any TLS (HTTP/1.1 and HTTP/2). See /insights/tcp-vs-udp-under-the-hood.
Certificate	Binds a public key to a hostname; chain of signatures back to a trust store
Server private key	Proves the server owns the cert (signature or decryption in older modes). Does not encrypt every HTTP byte in modern TLS
Key agreement (ECDHE)	Client and server contribute randomness; both derive the same shared secret
Session keys	Short-lived symmetric keys for this connection (or resumed session)
Nonce / IV	Fresh per TLS record (or carefully constructed); reuse with same key is catastrophic
Tamper check (AEAD tag)	Seal on each record; bad seal → reject, do not trust the plaintext
SNI	Hostname often sent in ClientHello so the server picks the right cert (visibility depends on TLS version / ECH)

Phase 1: TCP open

Nothing is encrypted yet. Client and server complete the TCP three-way handshake on port 443 (convention, not magic).

If this fails	Typical cause
Timeout / no SYN-ACK	Firewall, wrong IP, dead host, routing
Connection refused	Nothing listening on :443
Works then TLS fails	Transport is fine; problem is Phase 2+

DNS already answered “where is this name?” before this phase. See /insights/dns-under-the-hood.

TAKEAWAY

No session key exists after TCP alone. A green TCP connect is not “HTTPS is healthy.”

Phase 2: TLS handshake

Goal: authenticate the server (usual browser case) and run key agreement so both sides can derive session secrets. Optional: client certs (mTLS) so the server authenticates the client too.

Simplified modern shape (TLS 1.2/1.3 ideas; exact messages differ by version):

Certificate verify (asymmetric)

1. Server sends leaf cert + intermediates.
2. Client checks signatures up to a root in its trust store.
3. Client checks the URL hostname matches SAN/CN.
4. Failures look like: expired, wrong host, incomplete chain, unknown private CA, clock skew.

This step proves identity. It does not encrypt your POST body.

Key agreement (ECDHE)

Client and server each have an ephemeral ECDHE key pair for this handshake. They exchange public shares. From those shares (plus handshake transcripts and secrets), both run a key schedule and get the same traffic secrets. The long-term cert private key is used to authenticate (sign) in TLS 1.3, not to RSA-encrypt every megabyte.

Older “RSA key transport” modes shipped a premaster secret encrypted to the server public key. Modern deployments prefer ECDHE for forward secrecy: steal the server private key later → old recorded sessions stay hard to decrypt.

Handshake job	Primitive class	Outcome
Prove api.example.com	Asymmetric (cert signatures)	Trusted server public identity
Agree shared secret	Asymmetric math (ECDHE)	Input to key schedule
Optional client identity	Asymmetric (client cert)	mTLS

TAKEAWAY

Handshake = trust + agree secrets. Your JSON is still not on the wire in clear Application Data form until Phase 4.

Phase 3: Derive session keys

After ECDHE and the handshake transcript, both sides compute symmetric traffic keys (and IVs / nonces as the AEAD requires). Think of one logical session key material K (in reality: separate keys for each direction and purpose).

Property	Why it matters
Short-lived	Blast radius of leak is this connection / ticket lifetime
Symmetric	Fast enough for every record
Never “the cert private key”	Cert key is long-term identity; session keys are ephemeral
Both sides compute locally	K is not emailed as a single AES key blob

Session resumption (tickets / PSK) can skip a full handshake next time. You still end with symmetric traffic keys. Cryptographically it is a shortcut of Phase 2, not a different Phase 4 model.

TAKEAWAY

Session keys are the bridge. Asymmetric work produced trust and shared secrets; from here on, bulk protection is symmetric AEAD.

Phase 4: Encrypted HTTP

HTTP is unchanged as an application protocol: method, path, headers, status, body. Those bytes become the plaintext inside TLS Application Data records. Each record is protected with AEAD (commonly AES-GCM or ChaCha20-Poly1305):

1. Take plaintext HTTP bytes (or a chunk of them).
2. Encrypt with session key + nonce.
3. Attach tamper check (auth tag).
4. Put the result in a TLS record on the TCP stream.

On the wire (no keys)	After decrypt at an endpoint
Opaque TLS records	GET /orders HTTP/1.1 …
Cipher suite name in handshake logs	200 + JSON body
SNI / cert metadata (varies)	Same HTTP semantics as cleartext HTTP

Path observers without keys see ciphertext, not your Authorization header (with the usual caveats: SNI, IP, timing, length side channels).

HTTP/2 multiplexes streams inside the same TLS connection. Still one TLS record layer; still symmetric after the handshake.

TAKEAWAY

Bulk HTTPS traffic is symmetric AEAD on session keys. If you are RSA-encrypting large HTTP bodies yourself, you reinvented a worse TLS.

Phase 5: Close and resume

Orderly close typically includes TLS close_notify then TCP FIN/ACK. Abrupt close can be TCP RST or a dropped path; apps see connection errors, not clean HTTP statuses.

Event	Crypto meaning
New TCP + full handshake	New ECDHE, new session keys
Keep-alive / HTTP/2 reuse	Same TLS session; more Application Data with same keys
Session ticket / PSK resume	Faster re-entry; still AEAD with (derived) traffic keys
Server restart mid-session	Client often sees reset; must reconnect and handshake again

Where TLS ends

Topology	Encrypts to	Risk if misunderstood
Browser → origin app	App process	Simplest mental model
Browser → LB → app (TLS terminate at LB)	LB	Path LB→app may be cleartext in VPC
Browser → ingress → mesh sidecar → app	Each hop’s policy	Multiple trust boundaries
mTLS service-to-service	Peer identity per hop	Still not “browser private to DB”

Ask in design reviews: Who has plaintext after decrypt? If the answer is vague, compliance and incident response will be too.

Failure modes

Symptom	Likely phase	Wrong blame
Connect timeout	TCP / network	“API is down” when DNS or firewall
CERT_DATE_INVALID, hostname mismatch	Handshake (cert)	“Backend 500”
TLS alert / handshake failure	Cipher / version / cert / client auth	App business logic
HTTP 401 / 500 after padlock	Application (Phase 4 plaintext)	“TLS is broken”
Works in browser, fails in curl/Java	Trust store / SNI / TLS version	Random “network flake”
Intermittent after idle	Middlebox / LB idle timeout	App bug only

Full call map

Phase	Symmetric or asymmetric?	What you should remember
1 TCP open	Neither	Pipe only
2 Handshake	Asymmetric	Cert verify + ECDHE
3 Session keys	Hybrid → symmetric keys	Local derive, short-lived
4 HTTP records	Symmetric AEAD	Nonce + tamper check every record
5 Close	Symmetric until last record	Then tear down TCP

Final takeaway

HTTPS succeeds because it is a deliberate hybrid: certificates and ECDHE for trust and key bootstrap, AES-GCM (or ChaCha) for bytes at speed. One call is five phases, not one magic padlock. Know which phase owns the key, who terminates TLS, and which failure belongs to TCP, handshake, or HTTP, and you stop treating crypto as a sports team and start treating it as an architecture contract.
