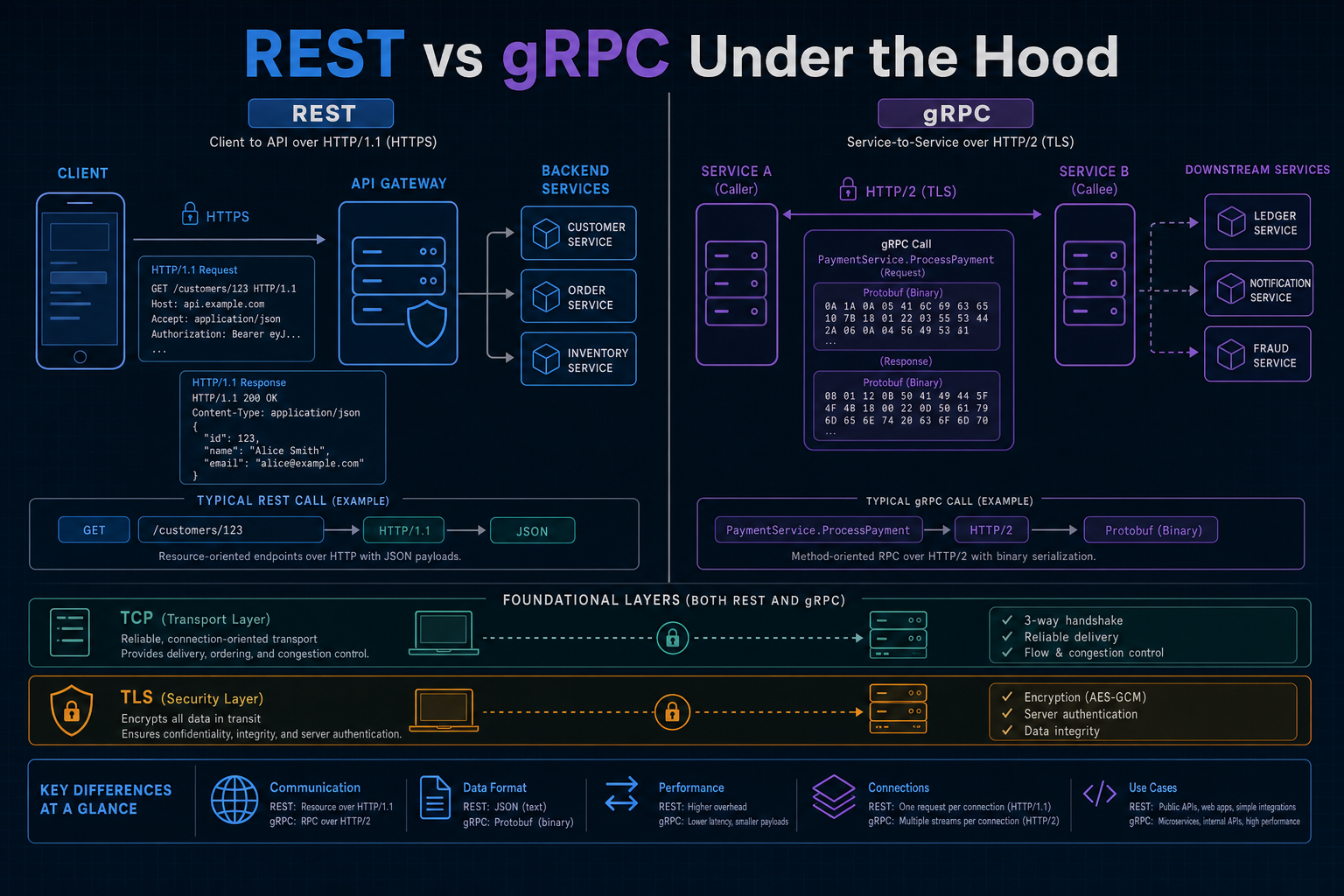

REST vs gRPC - Under the Hood

Modern platforms are not one app. They are dozens or hundreds of services that must talk over the network. The design question is not "JSON or binary?" alone. It is which communication model fits which boundary.

A banking, ecommerce, or streaming platform may split customer, payments, auth, orders, recommendations, notifications, and fraud into separate services. Two of the most common answers are REST (resource-oriented HTTP APIs) and gRPC (RPC over HTTP/2 with protobuf). Both move messages between systems. They solve different jobs.

THE CLAIM

REST and gRPC are not competitors for the same boundary. REST optimises for simple, interoperable, often public HTTP APIs. gRPC optimises for typed, high-throughput service-to-service calls on HTTP/2. Mature architectures usually use both: REST (or GraphQL) at the edge, gRPC inside.

The bottom line first

• REST: "access this resource" via HTTP methods and (usually) JSON.
• gRPC: "call this function on another service" via stubs, protobuf, and HTTP/2.
• Stack: both sit above HTTP; both typically ride TLS + TCP. Neither is "the UDP option."
• Contracts: OpenAPI/common docs for REST; .proto codegen for gRPC.
• Browsers: REST/fetch is native; gRPC needs grpc-web or a gateway for browsers.
• Default enterprise pattern: external REST, internal gRPC.

Where they sit in the stack

Companions: HTTP vs HTTPS Under the Hood · TCP vs UDP Under the Hood. HTTP/2 framing deep dive: HTTP/1.1 vs HTTP/2 vs HTTP/3 Under the Hood (coming soon).

---

From monolith to service-to-service

Early systems often lived in one process:

As organisations split into microservices, calls cross the network:

That creates the need for clear, efficient communication protocols.

---

REST: resource-based communication

REST is an architectural style centred on resources (business objects): customer, account, order, transaction. Clients interact with resources using standard HTTP methods.

Intent	Example
Read	GET /customers/123
Create	POST /payments
Replace / update	PUT /accounts/456
Delete	DELETE /orders/789

Focus: "What resource do I want to access?"

REST flow

Example REST request and JSON response

GET /customers/123 HTTP/1.1
Host: api.example.com
Authorization: Bearer token123

{
  "customerId": 123,
  "name": "John",
  "status": "ACTIVE"
}

REST characteristics

Trait	What it means
HTTP standards	Methods, status codes (200, 404, 401, 500), headers, familiar auth
JSON (common)	Human-readable, easy to debug, everywhere
Stateless	Each request carries what the server needs (e.g. bearer token)

TAKEAWAY

REST optimises for a shared web vocabulary. Great when many clients and humans must integrate without a custom RPC stack.

---

gRPC: function-based communication

gRPC asks a different question: "Which function should run on another service?"

Example mental model: PaymentService.ProcessPayment(...). It feels like a local call; the implementation runs remotely.

gRPC flow

Protocol Buffers

REST commonly uses JSON. gRPC commonly uses Protocol Buffers and a .proto contract.

Example .proto service contract

service PaymentService {
  rpc ProcessPayment(PaymentRequest) returns (PaymentResponse);
}

The contract defines operations, inputs, and outputs. Clients and servers generate typed stubs from it.

Why gRPC is often faster

Lever	Effect
Binary protobuf	Smaller payloads; faster (de)serialise than typical JSON
HTTP/2 multiplexing	Many RPCs on one connection (less handshake churn)
Streaming	Unary, server-stream, client-stream, bidirectional built in

Streaming fits stock ticks, chat-like paths, and other continuous exchanges. REST can approximate some of this (SSE, WebSockets, chunked responses) but it is not the native model.

TAKEAWAY

gRPC optimises for typed internal RPC. You pay with tooling, binary payloads, and weaker native browser support.

---

Side-by-side matrix

Capability	REST	gRPC
Communication model	Resource based	Function / RPC based
Protocol	HTTP/1.1 or HTTP/2	HTTP/2 (typical)
Data format	JSON / XML (common)	Protocol Buffers
Performance	Good	Very high (typical)
Human readable	Yes (JSON)	No (binary)
Contract	OpenAPI / docs	.proto + codegen
Streaming	Limited / add-on	Built-in
Browser support	Excellent	Limited (needs bridge)
Best usage	External / public APIs	Internal services

---

When to use REST

Prefer REST when humans and external systems consume the API:

• Mobile and web clients
• Partner / public APIs
• Payment, ecommerce, and integration surfaces that need easy docs and debugging

When to use gRPC

Prefer gRPC for internal microservice paths that need speed and contracts:

• Banking / cloud platforms with chatty service meshes
• Fraud, risk, and recommendation engines behind the gateway
• Real-time internal streams

---

Enterprise pattern: use both

Most large organisations do not pick one forever. A common design:

Boundary	Usual choice
External world	REST (sometimes GraphQL)
Inside the platform	gRPC

Banking payment sketch

Mobile app: POST /payments over REST. Inside: Payment to Fraud to Risk over gRPC. REST stays simple at the edge; gRPC keeps internal hops tight.

Streaming-platform sketch

Mobile app to REST to API Gateway to User / Video / Recommendation services. Internal fan-out and ranking paths speak gRPC so customer-facing APIs do not expose every internal call shape.

TAKEAWAY

Choose by boundary, not by fashion. External simplicity and internal performance can coexist.

---

Final takeaway

REST focuses on simplicity, interoperability, and public HTTP access. gRPC focuses on performance, strongly typed contracts, and efficient service-to-service communication.

The mature pattern is not REST or gRPC. It is knowing where each belongs:

Use REST when humans and external systems need to consume your services. Use gRPC when internal services need to communicate at high speed and scale.
